ALFANO EXPANSION BOX (ALFANO 7/6)
Usually ships within 24 hours
Regular price
$695.00
Couldn't load pickup availability

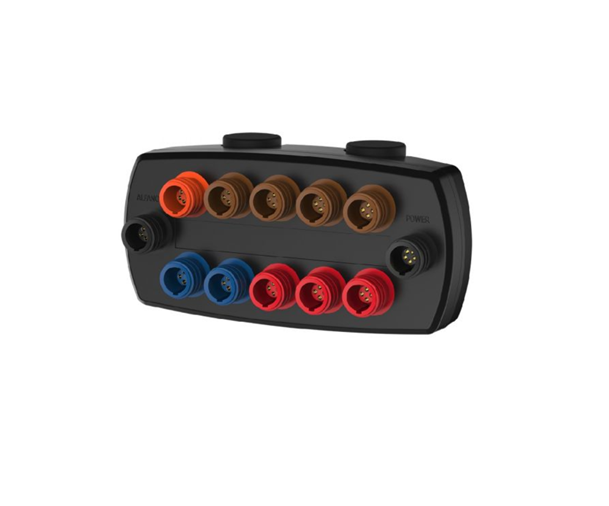

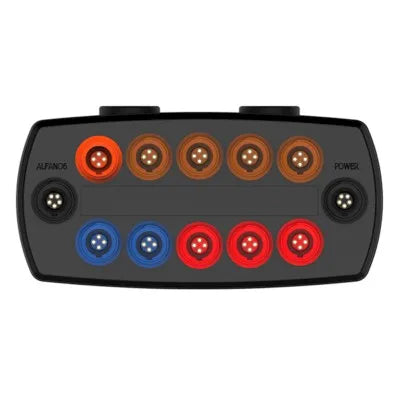

Alfano BOX12 Expansion Module – With Integrated G-Force Sensor (Alfano 6 & 7 Compatible)
Unlock full telemetry potential with the Alfano BOX12. Designed for professional karting and motorsport applications, this module expands the capabilities of your Alfano 6 or 7 data logger by adding multiple sensor inputs and a built-in 3-axis G-force sensor.
The BOX12 expansion module allows for highly comprehensive data acquisition when used with the Alfano 6/7 range of lap timers. The huge range of sensor inputs allows you to monitor every aspect of your kart and engine for monitoring and to make improvements.
Key Features:
- Integrated G-Force Sensor: Measures acceleration, braking, and cornering forces in 3 dimensions
-
Sensor Inputs:
- 4 x Speed
- 4 x Temperature (2 NTC + 2 K-Type)
- 1 x Lambda (AFR)
- 2 x Pedal Position
- 1 x Steering
- 1 x Valve
- 1 x External Power Supply
- Output: 1 x 5V for powering accessories
- USB Port: For charging and data download
- Plug-and-Play: Compatible with Alfano 6 and Alfano 7 via direct connection
Ideal For:
- Racers and tuners seeking full telemetry coverage
- Monitoring engine performance, driver inputs, and chassis dynamics
- Advanced data analysis for karting, bikes, and automotive setups
